Summarization

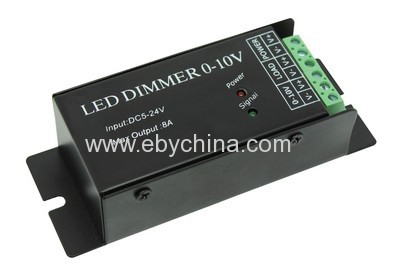

This dimmer have small sharp, through input 0-10V analog signal to control load output, dimmer provide 0-10 v port, it can external input 0-10v dimming, and also can connect potentiometer to dimming;The dimmer output signal adopt most advanced PWM digital brightness adjustment technology, can control a variety of lamp whose source of light is LED. For instance, point source of light,flexible strip light, wall washer lamp, glass curtain wall light and so on; It is cheap, Connection convenient, easy to use.

Technical parameters

   Working temperature: -20-60°C

   Supply voltage: DC5~24V

   Output: 0-10v dimmer signal

   Connect mode: common anode

   Output current: ≤8A

   Output power:12V:<96W, 24V:<192W

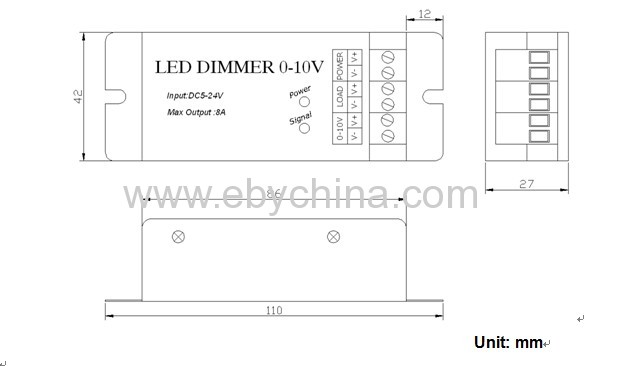

   External dimension: L108 Χ W42 Χ H27 mm

   Packing size: L110ΧW50ΧH40mm

   Net weight: 112g

   Gross weight:: 135g
