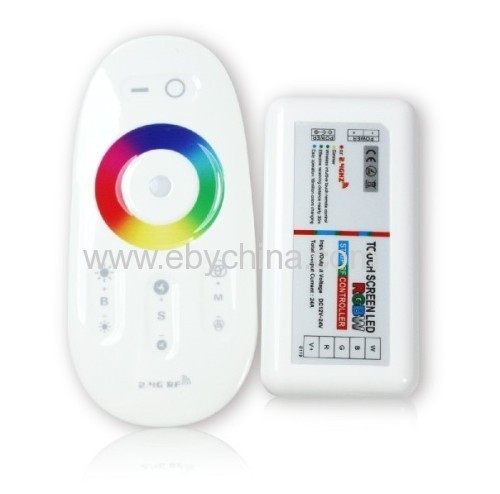

This system is a high-performance RGBW led touch remote controller, adopting the most advanced PWM control technology, controlling all RGBW led products with Five lines and four circuits( common anode),owning 640 thousand colors and 20 automatical changing modes to choose.

Also, It has the memory function(that is to say, the previous settings will be resumed when power on again). It is widely used in led RGBW LED strip light, led module and so on.

With the technology of the 2.4G high frequency wireless remote control, it has the the characteristics of low power consumption, long distance transmission, and strong anti-interference ability ,high speed telecommunications, etc.

The remote looks fashionable and elegant , with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use .

The modular design and easy screwed terminals enable the controller easy to match with all kinds of led light products.

Technical data:

Working temperature: -20-60℃

Working voltage:DC12-24V

output:3chanel

output current:<4A  per chanel

static state consumption:<1W

Output power:  5V:<60W,  12V:<144W,  24V:<288W

Package:

Product size:L128×W64×H24mm

white box:127×127×27mm

one carton size:72×27×29cm /100pcs

net weight:105g

gross weight :128g
